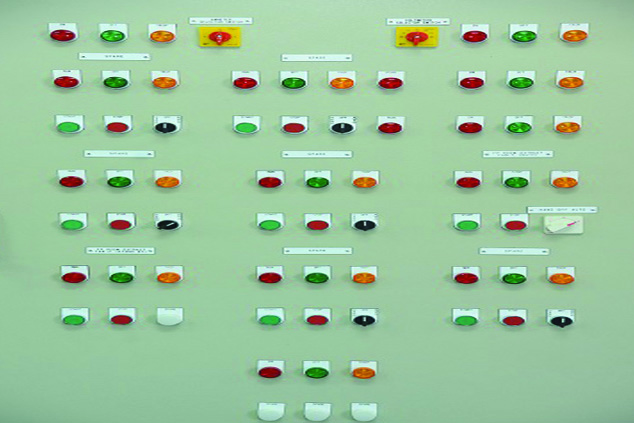

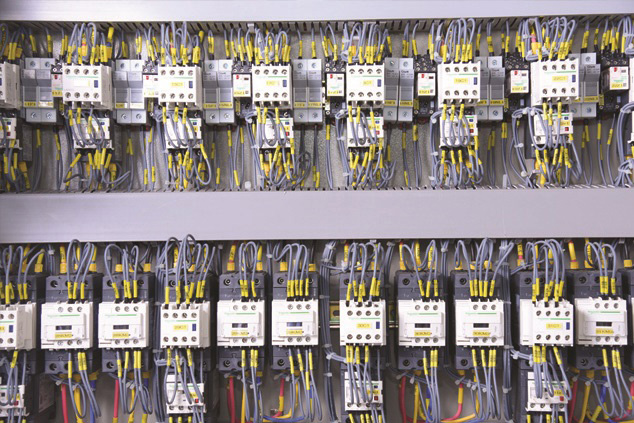

Power DistribuControl Panels (various types)

Description

Rating

Up to 6300 A, Icw 100kA Fault Level, Ipk 220kA

Incomer

ACB, MCCB

Outgoing

ACB, MCCB, Switch Fuse Units

Metering

Voltmeter, Ammeter, KWH meter, KVAh Meter, KW Meter, HZ Meter, PF Meter etc. in accordance with customer specification.

Enclosure

Electro galvanized sheet steel power coated enclosure conforming up to IP54 ratings.

Construction

Form 2, 3 and 4, Type -2, 6, 7.

Bus Bars

Sleeved with color coded,fire retardant insulation sleeves of 20KV/mm class.99.99% pure, High conductivity,electrolytically tinned Copper Bus Bars.
